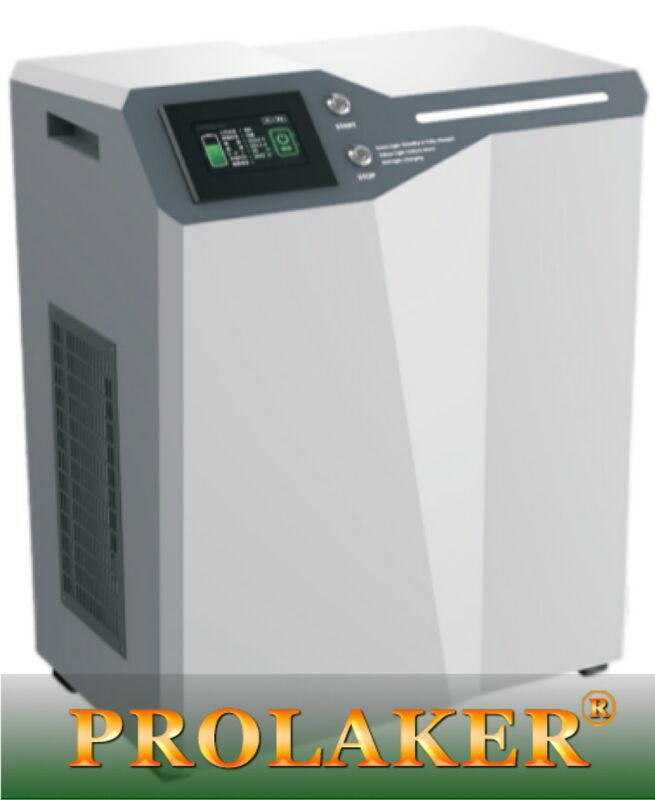

ESCH Series Touch Screen Industrial Forklift Lithium Battery Charger With PFC & LLC

ESCH Series Touch Screen Industrial Forklift Lithium Battery Charger With PFC & LLC
ESCH Series Touch Screen Industrial Forklift Lithium Battery Charger With PFC & LLC

Большие изображения :  ESCH Series Touch Screen Industrial Forklift Lithium Battery Charger With PFC & LLC

Подробная информация о продукте:
Место происхождения: Китай
Фирменное наименование: LAKER
Сертификация: CE/ISO9001
Номер модели: ESCH
Оплата и доставка Условия:
Количество мин заказа: Возможен торг
Цена: Подлежит обсуждению
Упаковывая детали: Л/К, Вестерн Юнион, Т/Т
Время доставки: 15 дней после подтверждения заказа и депозита
Условия оплаты: Л/К, Т/Т, западное соединение
Поставка способности: 5000 шт в месяц
Подробное описание продукта
Приложение: Литийная батарея для погрузчиков Модель: ESCH80V150A (сенсорный экран)
Цвет: Серебро Габаритные размеры: 607*281,4*511,6 мм
Максимальный выходной ток (А): 150 Выходная мощность (Вт): 15000



product description

The ESCH forklift battery charger typically refers to an industrial charger used to replenish the energy in forklift batteries. These chargers are often designed for heavy-duty environments, aiming to ensure optimal performance, efficiency, and longevity of forklift batteries.


Product Catalog

Model ESCH 80V 130A(touch screen) ESCH 80V 150A(touch screen) ESCH 80V 200A(touch screen)
Overall dimension 607*281.4*511.6mm
Maximum output current(A) 130 150 200
Output power(W) 13000 15000 16000
Input Power Supply 380V土15%  Four-wire 380V土15% Four-wire 380V土15% Four-wire
Maximum Output Voltage(VDC) 100 100 100
Compatible Battery Specification

80V 400-600Ah lithium battery
Maximum Efficiency ≥94% ≥94% ≥93%
Output Voltage Regulation Accuracy ±0.5% ±0.5% ±0.5%
Output Current Regulation Accuracy ±1% ±1% ±1%
Operating Temperature -40°C-50℃ -40°C-50℃ -40°C-50℃
Vibration Resistance Grade

SAEJ1378
Cooling Method Air Cooling Air Cooling Forced Air Cooling
Over Temperature Protection 70℃ 70℃ 70℃
Input Overvoltage Protection (VAC) >530±10V >530±10V >530±10V
Input Undervoltage Protection (VAC) <250±10V <250±10V <250±10V
Output Overvoltage Protection (VDC) 105±5 105±5 105±5
Output Overcurrent Protection (A)

>110% of Max Charging Current
Output Short Circuit Protection When output short-circuited, the charger shuts down automatically; it will self-recover after fault removal.
Battery Reverse Polarity Protection None


Key Features

  • Fully automatic lithium battery charger that strictly follows the lithium battery charging characteristic curve throughout the charging process.
  • Built-in Active Power Factor Correction (PFC), it achieves zero grid pollution and avoids large current impact on the power grid.
  • Adopting high-frequency soft switching LLC power technology, the overall efficiency reaches up to 93%, while traditional chargers only achieve 50%-60%.
  • It is equipped with complete protection functions: input overvoltage/undervoltage, input phase loss, output overcurrent, output overvoltage/undervoltage, output short circuit, output isolation and module overheating protection.
  • Optimized thermal design ensures more uniform heat distribution. The internal circuit board is treated with shockproof, moisture-proof and dust-proof processes to enhance operational reliability.
  • This series is equipped with a digital display function, which can real-time display charging current, voltage and charging time online.
  • Modular internal design features wide input voltage range and high charging power.
  • Fast charging speed, full charging only takes 2 to 3 hours.

product display

ESCH Series Touch Screen Industrial Forklift Lithium Battery Charger With PFC & LLC 0
