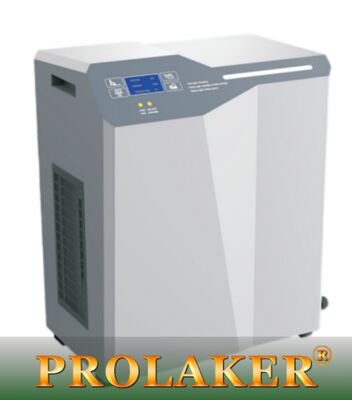

Heavy Duty 80V Industrial Forklift Lithium Battery Charger High Efficiency With Full Protection Functions

Heavy Duty 80V Industrial Forklift Lithium Battery Charger High Efficiency With Full Protection Functions
Heavy Duty 80V Industrial Forklift Lithium Battery Charger High Efficiency With Full Protection Functions

Большие изображения :  Heavy Duty 80V Industrial Forklift Lithium Battery Charger High Efficiency With Full Protection Functions

Подробная информация о продукте:
Место происхождения: Китай
Фирменное наименование: LAKER
Сертификация: CE/ISO9001
Номер модели: ESCH
Оплата и доставка Условия:
Количество мин заказа: Возможен торг
Цена: Подлежит обсуждению
Упаковывая детали: Коробка, стандартный деревянный поддон
Время доставки: 15 дней после подтверждения заказа и депозита
Условия оплаты: Л/К, Т/Т, западное соединение
Поставка способности: 5000 шт в месяц
Подробное описание продукта
Модель: ЭЩ 80В 130А Приложение: Литийная батарея для погрузчиков
Цвет: Серебро Материал: сталь
Габаритные размеры: 607*281,4*511,6 мм Максимальный выходной ток: 130a
Выходная мощность: 13000w


Product description

The ESCH forklift battery charger typically refers to an industrial charger used to replenish the energy in forklift batteries. These chargers are often designed for heavy-duty environments, aiming to ensure optimal performance, efficiency, and longevity of forklift batteries.



Key Features

  • Fully automatic lithium battery charger strictly follows the lithium battery charging characteristic curve during the whole charging process.
  • The charger is built-in with Active Power Factor Correction (PFC), achieving zero pollution to the power grid and preventing large current impact on the grid.
  • It adopts high-frequency soft switching (LLC) power technology, with the overall efficiency up to 93%, while traditional chargers only reach 50%-60%.
  • The module is equipped with comprehensive protection functions: input overvoltage/undervoltage protection, input phase loss protection, output overcurrent protection, output overvoltage/undervoltage protection, output short circuit protection, output isolation protection, and module overheating protection.
  • Adopting optimized thermal design for more uniform heat distribution; the internal circuit board is treated with shockproof, moisture-proof and dust-proof process to improve operational reliability.
  • This series is equipped with digital display function, which can real-time show charging current, charging voltage and charging time on line.
  • The charger adopts internal modular design, featuring wide input voltage range and high charging power.
  • Fast charging speed, the full charging time only takes 2-3 hours.


Product Catalog

Model ESCH 80V 130A ESCH 80V 150A ESCH 80V 200A
Overall dimension 607*281.4*511.6mm
Maximum output current(A) 130 150 200
Output power(W) 13000 15000 16000
Input Power Supply 380V土15%  Four-wire 380V土15% Four-wire 380V土15% Four-wire
Maximum Output Voltage(VDC) 100 100 100
Compatible Battery Specification

80V 400-600Ah lithium battery
Maximum Efficiency ≥94% ≥94% ≥94%
Output Voltage Regulation Accuracy ±0.5% ±0.5% ±0.5%
Output Current Regulation Accuracy ±1% ±1% ±1%
Operating Temperature -40°C-50℃ -40°C-50℃ -40°C-50℃
Vibration Resistance Grade

SAEJ1378
Cooling Method Air Cooling Air Cooling Forced Air Cooling
Over Temperature Protection 70℃ 70℃ 70℃
Input Overvoltage Protection (VAC) >530±10V >530±10V >530±10V
Input Undervoltage Protection (VAC) <250±10V <250±10V <250±10V
Output Overvoltage Protection (VDC) 105±5 105±5 105±5
Output Overcurrent Protection (A)

>110% of Max Charging Current
Output Short Circuit Protection When output short-circuited, the charger shuts down automatically; it will self-recover after fault removal.
Battery Reverse Polarity Protection None
